Lancia Delta S4 – The Rally Group B Legend

Lancia Delta S4 – The Rally Group B Legend

The first generation of the Lancia Delta was created in 1979, when the magic pencil of Giorgetto Giugiaro conjured up a compact two-volume car, developed following the geometric motif of the trapezoid. The votes of the European specialist press, which elected the Delta as Car of the Year 1980, confirmed a success already decreed by the public since its first appearance.

The Delta chronologically replaced the Beta, inheriting from it the best parts of the chassis, in particular the modern independent MacPherson type suspension, both in the front and at the rear. But it was the Lancia Fulvia – born as an elegant medium sedan but rendered immortal by the sporting and commercial triumph of the Coupé – which passed the baton of racing glory to the Delta.

Initially equipped with the 1300 and 1500 engines of the Fiat Ritmo, in 1983 the Lancia Delta adopted the sophisticated 1585 cc twin-cam engine designed by Aurelio Lampredi: the 105 HP Delta 1600 GT made its debut, soon joined by the 130 HP Turbo version boasting the heroic HF brand. Thereby, Lancia decided to resume the prestigious acronym that had qualified the top performing versions which, after the Lancia Stratos, had no longer been used.

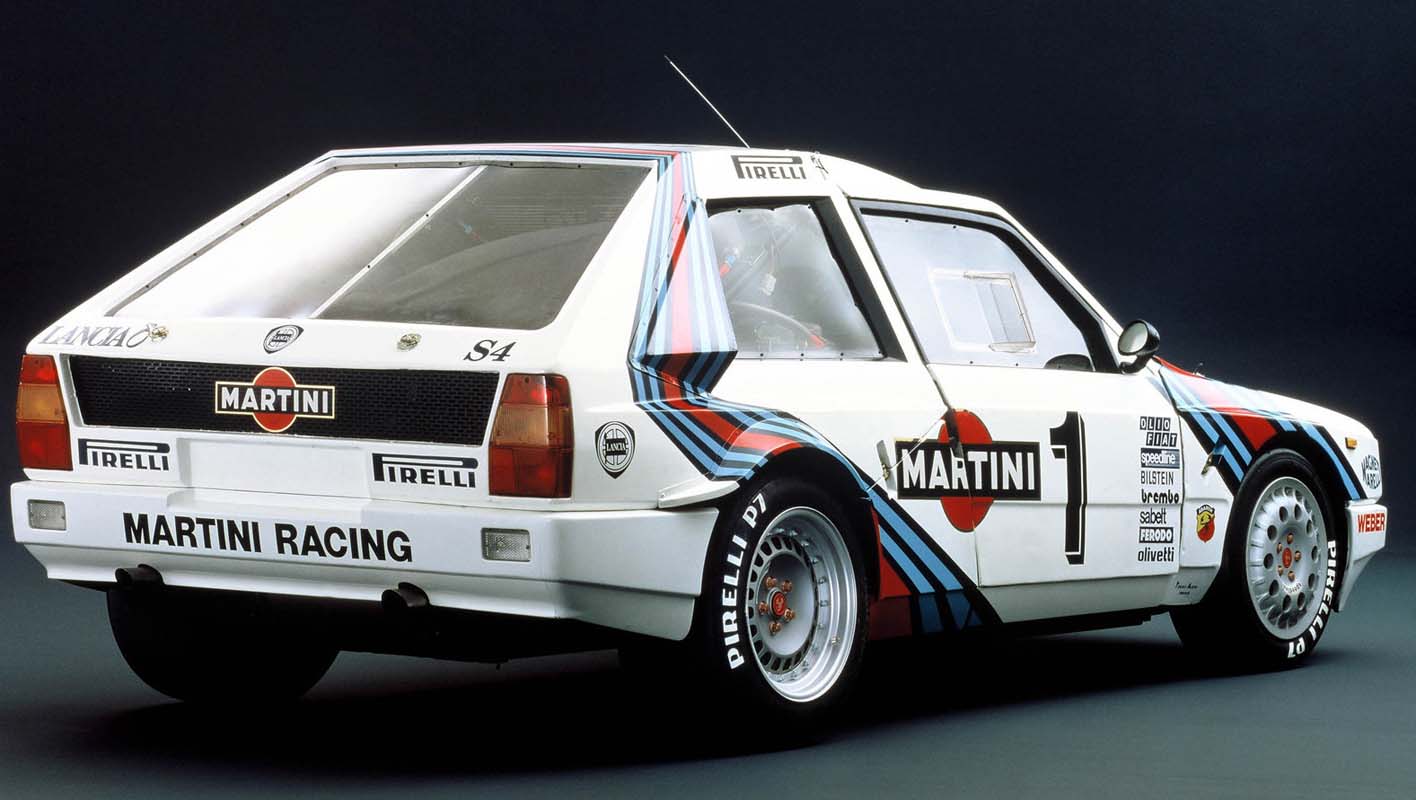

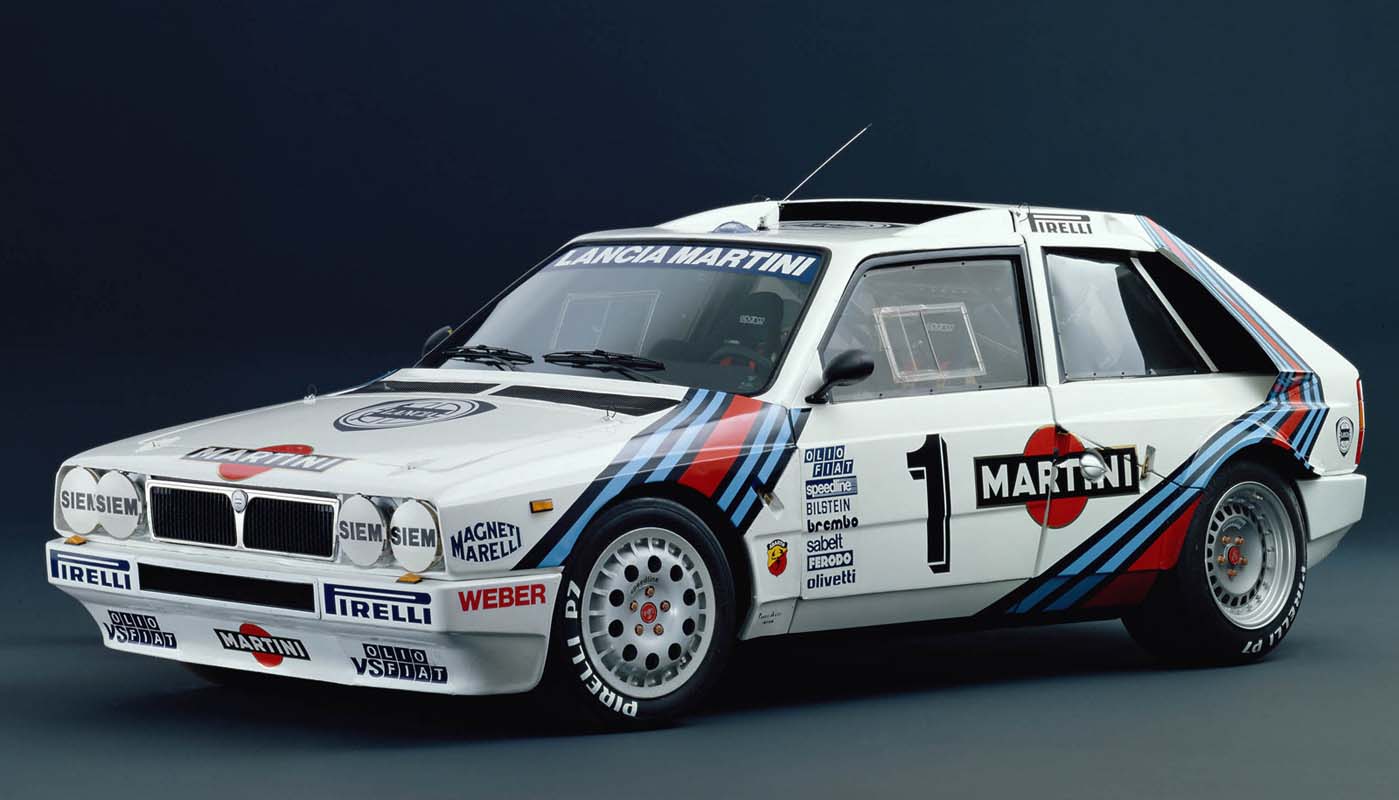

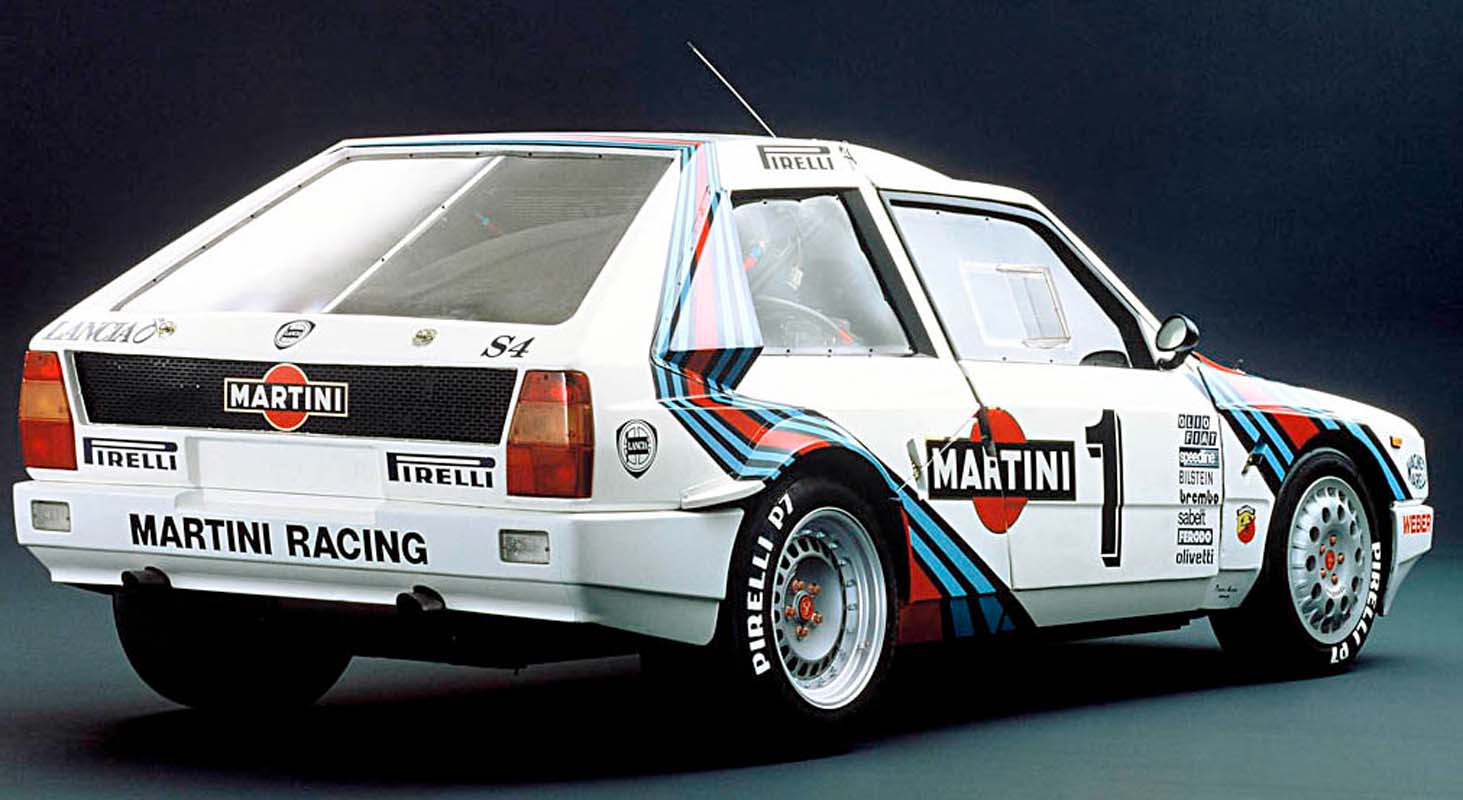

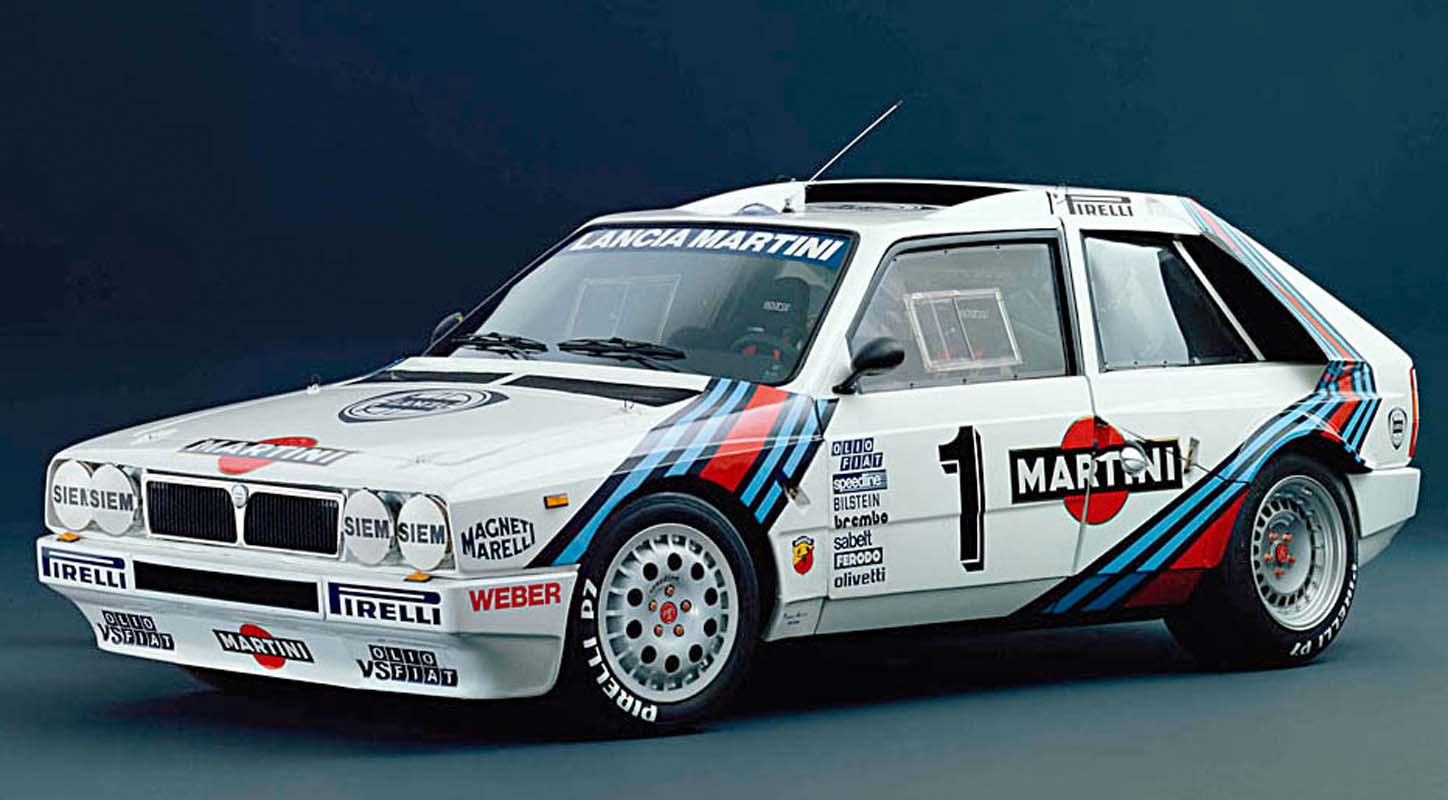

Between 1985 and 1986, in collaboration with Abarth, the Delta S4 was created: an extreme racing car conceived to fight on an equal footing with other all-wheel drive competitors in the World Rally Championships. The Delta S4 was called upon to replace the victorious Lancia Rally 037 and was produced in only 200 units in order to obtain Group B homologation. Apart from the name, it shared very little with the standard Delta, along with a vague echo of its shapes.

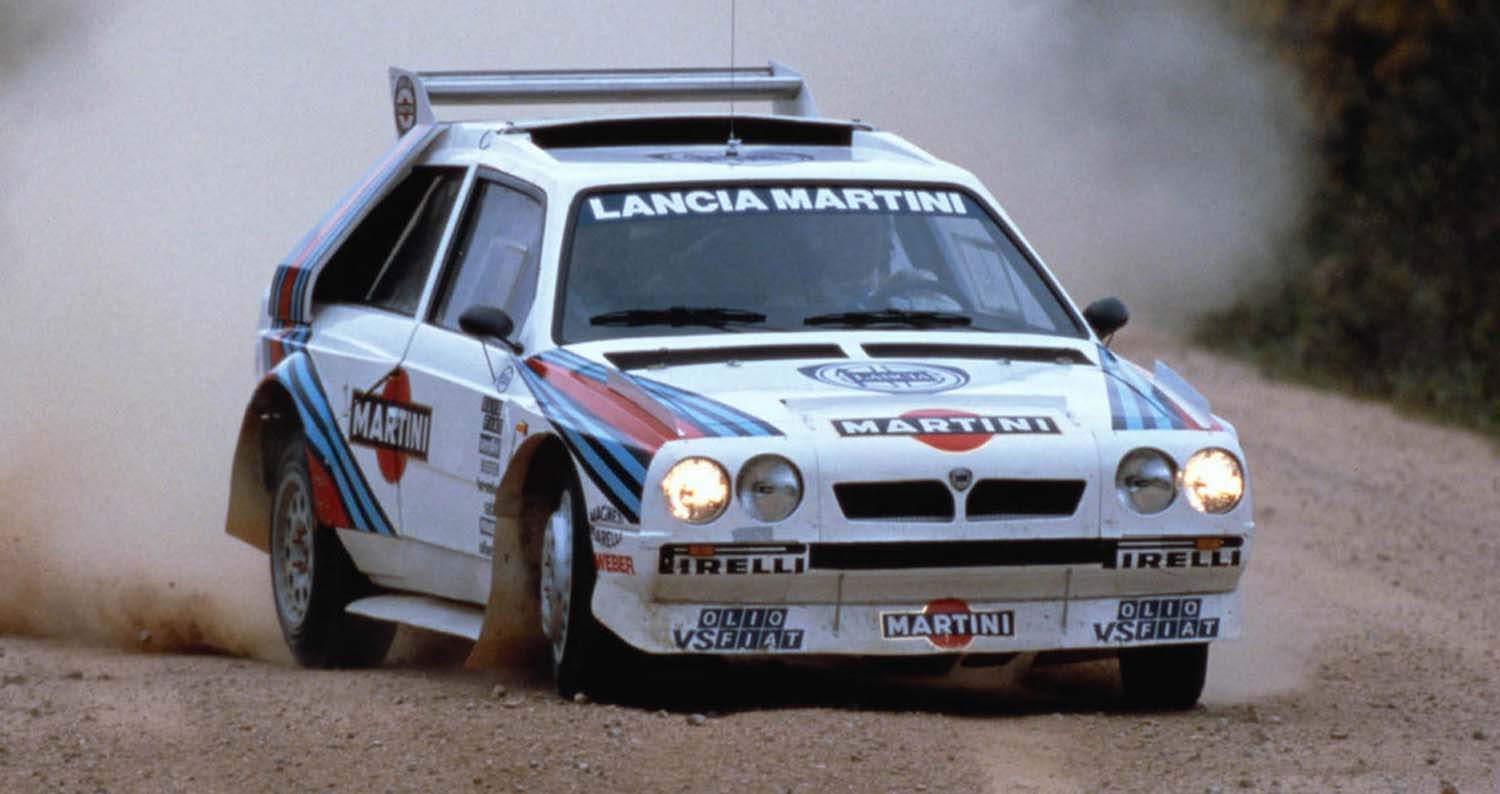

The Delta S4 competed in the World Rally Championship in 1985 and 1986, until Group B class was disbanded and the cars were eventually banned from competition completely by European sanctioning body FIA. The car replaced, and was an evolution of the 037. The S4 took full advantage of the Group B regulations, and featured a midship-mounted engine and all-wheel drive for superior traction on loose surfaces.

Lightweight but extremely powerful, these ‘monstrous’ thoroughbreds achieved levels of road-racing performance that made them dangerous. A series of accidents led the FIA (the International Automobile Federation, motor racing’s regulatory body) to ban Group B racing cars  from the World Rally Championship starting from the 1987 season, also stating that they were too different from their series production models. Therefore, Group A became WRC’s new “headline category”. To obtain approval to race in it, 5,000 cars had to be produced in twelve months, maximum power could not exceed 300 HP and car weight could not be less than 1035 kg. These Federation innovations were implemented to make the cars more solid and less fast, providing more overall safety for participants and for the public.


The car’s 1,759 cc (1.8 L) Inline-four engine combined supercharging and turbocharging to reduce turbo lag at low engine speeds (rpm). The engine generated a maximum output of 490 PS (360 kW; 483 hp) but some sources even claim that the engine was capable of generating 507 PS (373 kW; 500 hp). In 1985, when Lancia engineers tested an S4 engine under extreme conditions, it developed around 1,014 PS (746 kW; 1,000 hp) at 5 bars of boost pressure. An engine capacity multiple of 1.4 was applied to forced induction engines by the FIA and the choice of 1,759 cc (1.8 L) put the S4 in the under 2,500 cc class, which allowed for a minimum weight of 890 kg (1,962 lb). The combined super/turbocharger system (often referred to as twincharging) was a development of the 037 engine that generated 325 hp (242 kW) with a supercharger only.

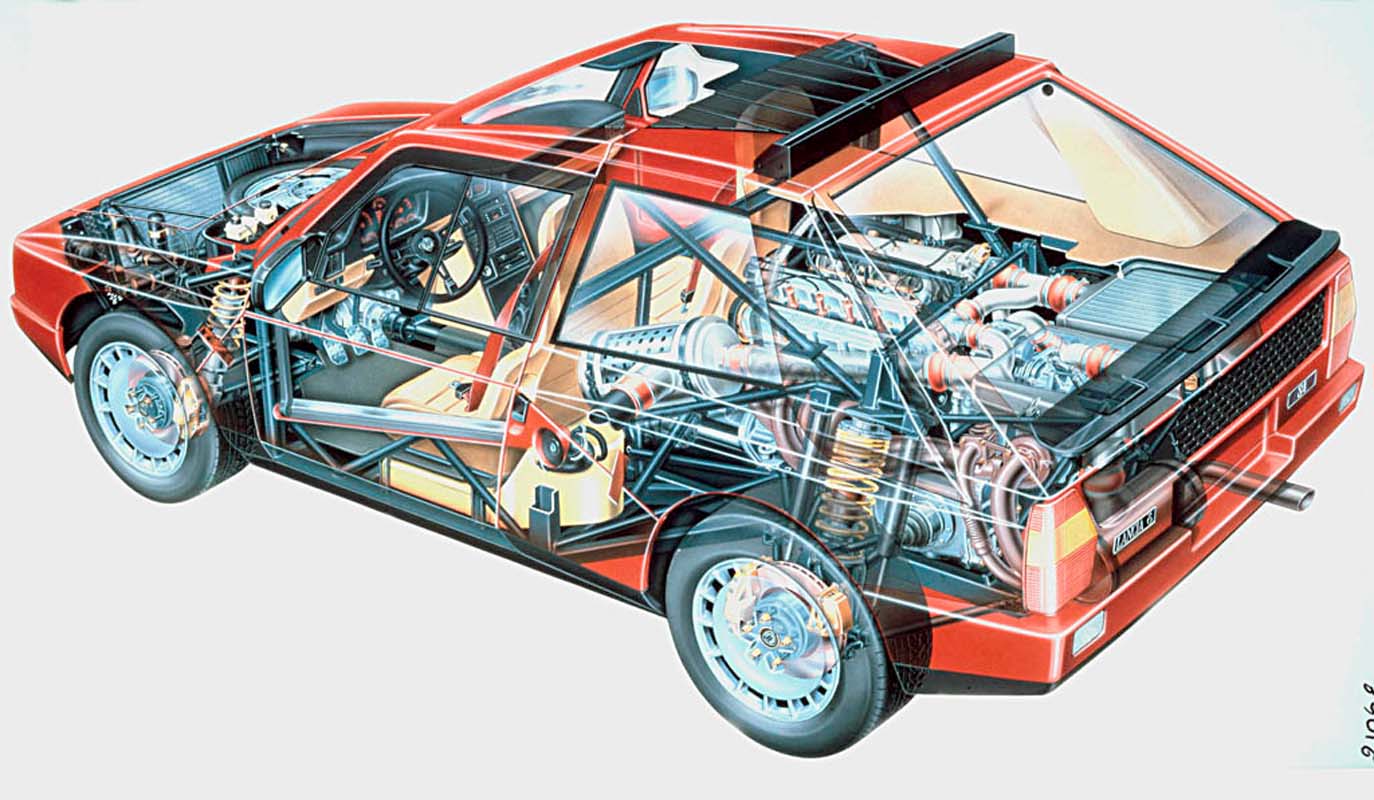

Like Peugeot’s earlier 205 T16, the mid-engine Lancia Delta S4 was a silhouette race car (for marketing purposes), and shared virtually nothing in terms of construction with the production front-engine Delta. The chassis was a tubular space frame construction much like the 037. It featured long travel double wishbone suspension front and rear, with a single large coil over at the front along with a separate spring and twin shock absorbers at the rear. The bodywork was made of a carbon fibre composite with front and rear bodywork fully detachable for fast replacement due to accident damage, allowing ease of access during on-event servicing. The bodywork featured several aerodynamic aids including bonnet opening behind the front-mounted water radiator with Gurney flap, front splitter and winglets moulded into the front bumper panel, flexible front skirt, and rear deck lid wing that featured both a full aerofoil wind section twinned with a deflection spoiler. The door construction style was brought from the 037 with a hollow shell all-Kevlar construction that had no inner door skin, no door handle or window winder. The door was opened with a small loop and the windows were fixed perspex with small sliding panels to allow ventilation and passing of time cards.

The all-wheel drive system, developed in cooperation with English company Hewland, featured a centre differential which allowed for 60-75% of the torque to go to the rear wheels.

The Group S Lancia ECV was to replace the Delta S4 in the 1987 season but the Group S was scrapped along with Group B and Lancia used the production-derived Delta for the 1987 season.


The method of turbocharging and supercharging an engine is referred to as twincharging. The Delta S4 was the first example of this technology. The Delta S4 had a comparatively large Kühnle, Kopp & Kausch 27 turbo with a boost threshold of 4500rpm. The turbo technology of the time had quite marked boost thresholds, with little or no response below this. Some people mistake this for turbo lag. This phenomenon, known as boost threshold, negatively affects driveability, an important aspect of any car. The Abarth Volumex R18 supercharger was the twin of the turbo, providing low to mid range boost and improving engine response and driveability of the S4.  Superchargers do not suffer from lag as they are powered directly from the engine’s crankshaft, rather than by the exhaust gases. However, because of this direct mechanical connection, the supercharger presents a significant parasitic load to the engine at higher RPM.Lancia designed their twincharger system so the supercharger provides instantaneous boost in the lower RPM range, switching to the turbocharger for more efficient higher RPM engine operation.

Detla S4 Stradale

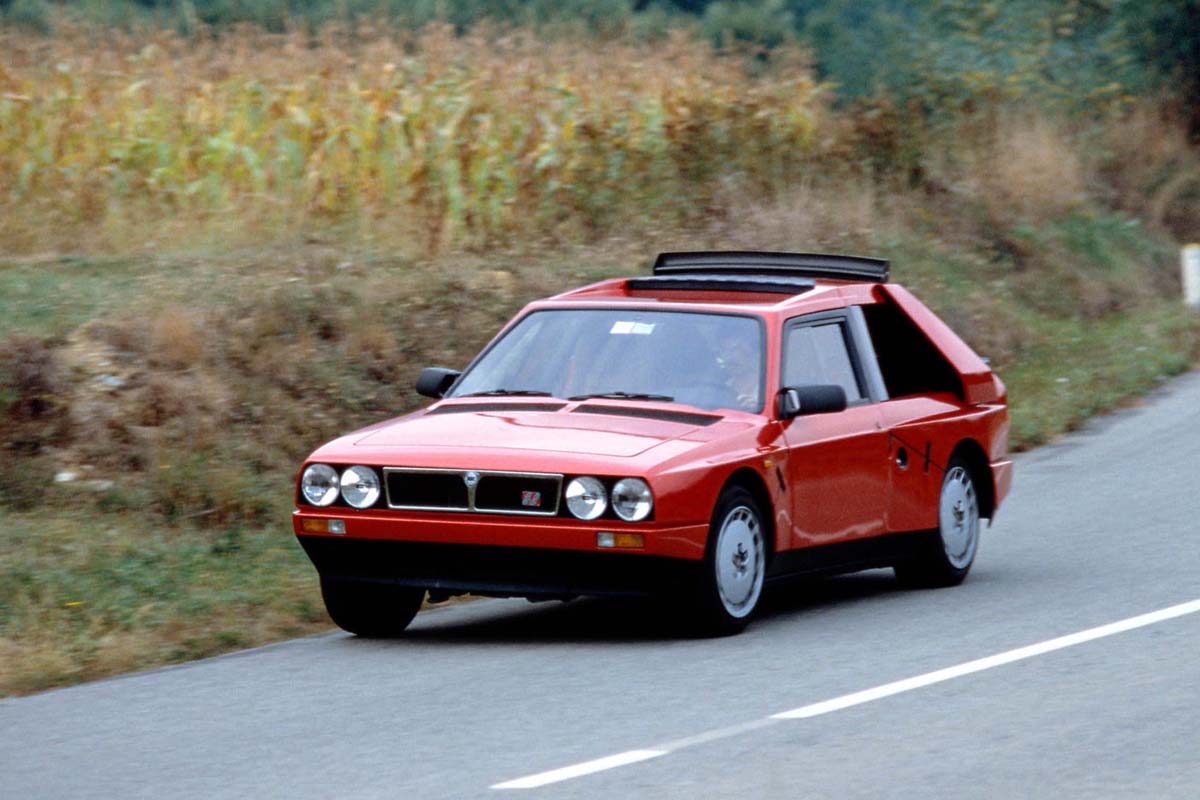

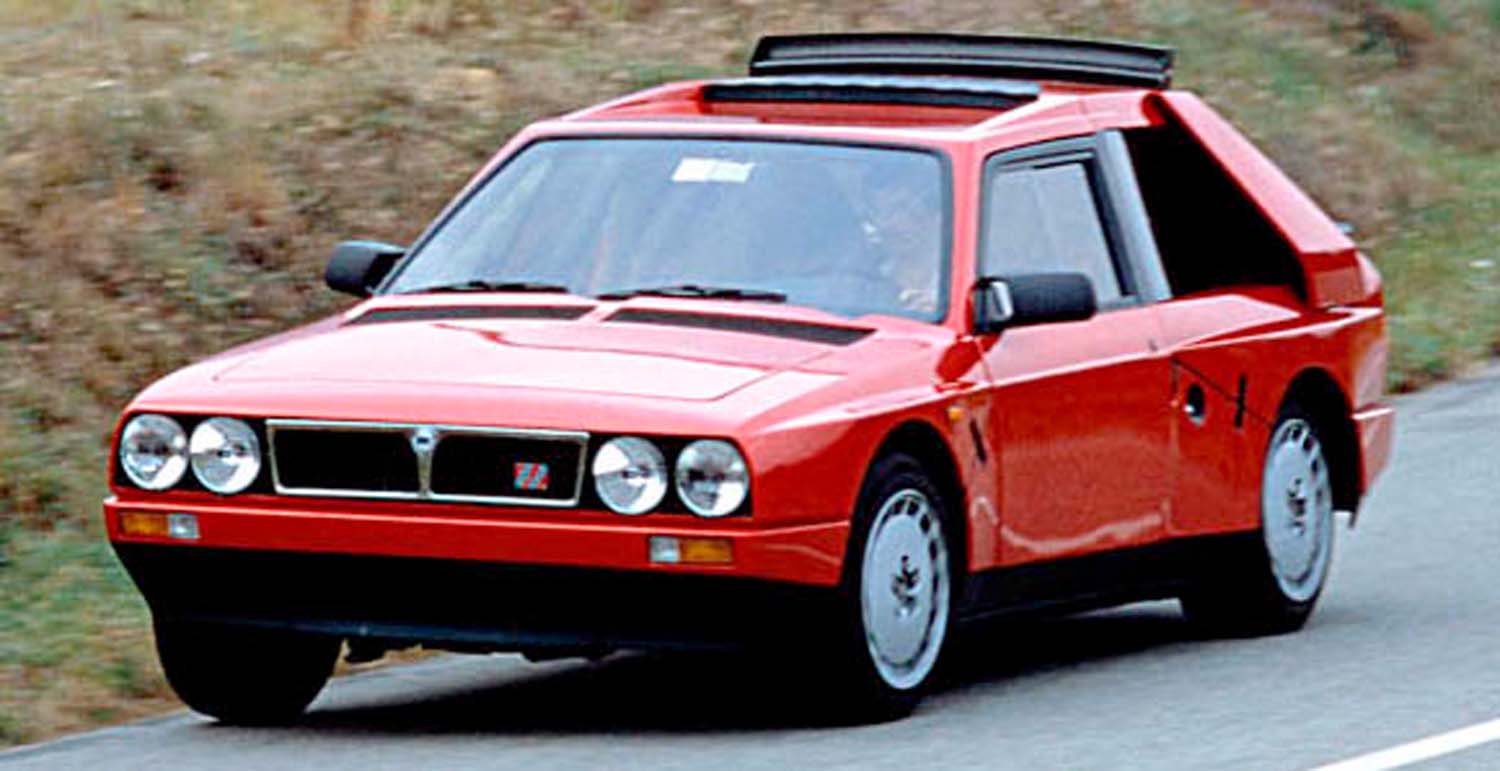

Between October 1985 and 1986 Lancia, in keeping with Group B racing regulations, was to have built 200 of a road-going version of the Delta S4, officially named Lancia Delta S4 but widely known as “Stradale”, for the purpose of homologation in Group B, but it is more likely that fewer than 100 were actually built. In Italy, the car was priced at about 100 million Lira: five times the price of the most expensive Delta of the time, the HF Turbo.

The Stradale’s chassis was a space frame, similar to its rally counterpart, built out of CrMo steel tubes and aluminium alloy for the crash structures; it was covered by epoxy and fiberglass body panels. Like the rally car, the 1.8-litre four-cylinder engine was longitudinally mid-mounted, equipped with Weber-Marelli IAW integrated electronic ignition and fuel injection, a supercharger, a turbocharger and two intercoolers. In road tune the 1.8 produced 250 PS (184 kW; 247 hp) at 6750 rpm and 291 N⋅m (215 lb⋅ft) of torque at 4500 rpm. The “Stradale” kept a three differential four-wheel-drive system from the rally car; the centre differential sent 30% of the engine torque to the front open differential, and 70% to the rear limited slip.

Lancia claimed the car could reach a top speed of 225 km/h (140 mph) and accelerate from standstill to 100 km/h (62 mph) in 6.0 seconds. In contrast to its bare bones racing sister, the S4 Stradale featured an Alcantara-upholstered interior, sound deadening, a suede steering wheel, and was equipped with power steering, trip computer and air conditioning. While racing versions were built by Abarth, the Stradales were built by Torinese coachbuilders Savio.

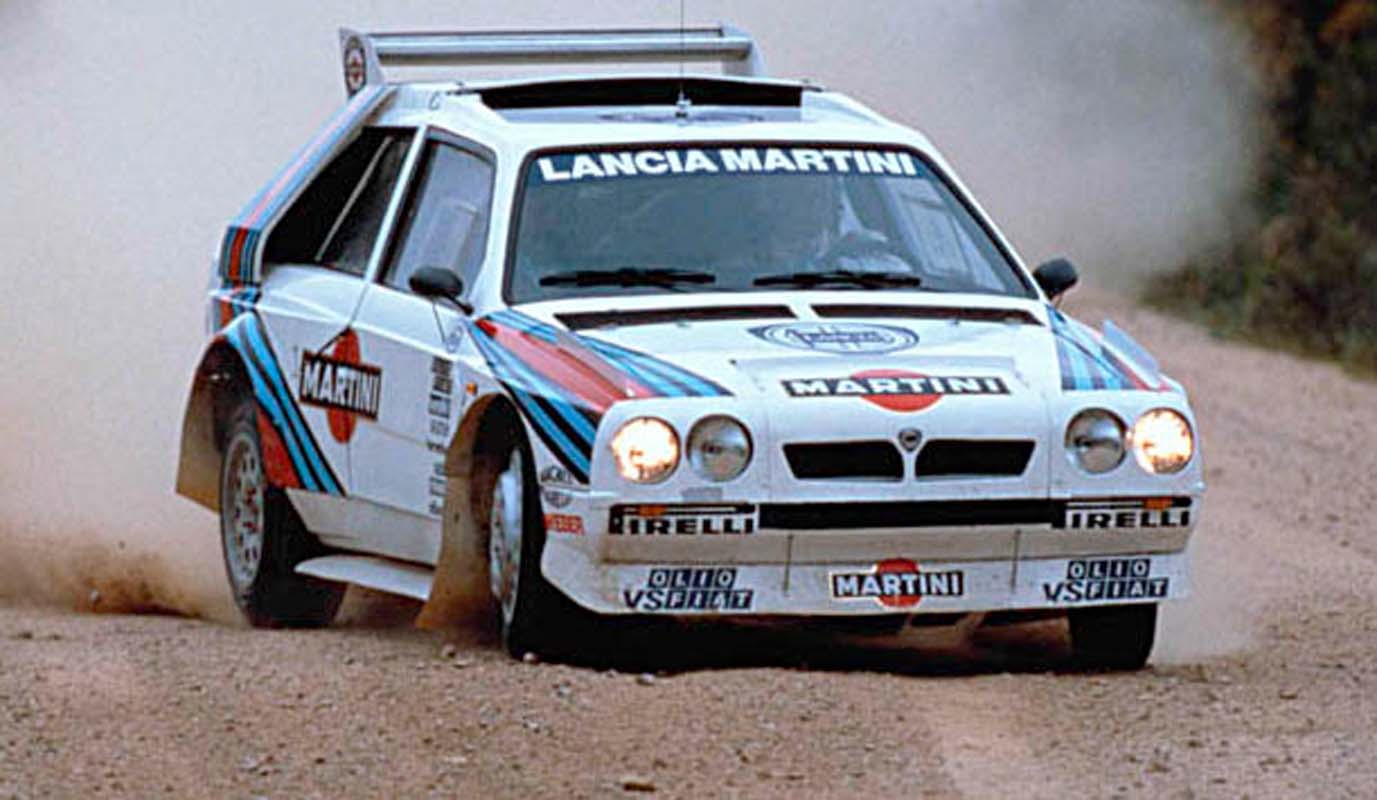

In competition, the car won its first event, the 1985 RAC Rally in the hands of Henri Toivonen and carried Markku Alén to second in the drivers’ championship the following year. For two weeks after the end of the 1986 season Alen was champion until the FIA annulled the results of the Sanremo Rally due to irregular technical scrutineering. Alén had won that event and the loss of points handed the title to Peugeot’s Juha Kankkunen. All told, in 1986 there were three wins for the Delta S4 (San Remo not included). The Monte Carlo Rally by Toivonen, Rally Argentina by Massimo Biasion and the Olympus Rally by Alén. The car also won the 1986 European Rally Championship with Italian driver Fabrizio Tabaton, whose car was run by Italian team HF GRIFONE in ESSO livery. The factory supported Jolly Club team also ran cars in TOTIP livery, one of which was for Dario Cerrato. The car competed at every rally that year except for the extremely demanding and gruelling Safari Rally in Kenya, where Lancia decided that the Delta S4 was not developed enough for that event, so they decided to use the older 037 for Alen, Biasion and three local drivers who were regulars in the event.

The car’s legacy was tainted by the fatal crash of Toivonen and co-driver Sergio Cresto on the 1986 Tour de Corse, where the Finnish driver inexplicably missed a tight left-hand hairpin bend and plunged into a ravine. The car burst into flames immediately, killing both of the crew. The accident led directly to the abolition of Group B.

Wikipedia  (GNU Free Documentation License)
