2024 CHEVROLET TRAILBLAZER SPECIFICATIONS
EPA-EST. MPG
| 1.2L FWD | Not yet available |
| 1.3L FWD | Not yet available |
| 1.3L AWD | Not yet available |
FUEL TANK CAPACITY (approx.)
| 13.2 gal. / 50 liters |
ENGINE
| ECOTEC 1.2L Turbo I-3 | |
| Bore & Stroke (in. / mm): | 2.95 x 3.54 / 75 x 90 |
| Block Material: | Aluminum |
| Cylinder Head Material: | Aluminum |
| Valvetrain: | DOHC |
| Fuel Delivery: | Direct injection |
| Horsepower (hp / kW @ rpm): | 137 / 102 @ 5000 |
| Torque (lb.-ft. / Nm @ rpm): | 162 / 219 @ 2500 |
| ECOTEC 1.3L Turbo I-3 | |
| Bore & Stroke (in. / mm): | 3.11 x 3.58 / 79 x 91 |
| Block Material: | Aluminum |
| Cylinder Head Material: | Aluminum |
| Valvetrain: | DOHC |
| Fuel Delivery: | Direct injection |
| Horsepower (hp / kW @ rpm): | 155 / 115 @ 5600 |
| Torque (lb.-ft. / Nm @ rpm): | 174 / 236 @ 1600 |
TRANSMISSION & AXLE
| Type: | Continuously Variable Transmission |
| Application: | 1.2L Turbo and 1.3L Turbo FWD |
| Variator ratio spread | 7.0:1 |
| Underdrive | 2.621: |
| Overdrive | 0.374: |
| Overall ratio spread | 7.0:1 |
| Reverse | 0.67:1 |
| Final Drive Ratio: | 5.45:1 |
| Type: | 9-Speed Automatic Transmission |
| Application: | 1.3L Turbo AWD |
| Gear Ratios (:1) | |
| First | 4.69 |
| Second | 3.31 |
| Third | 3.01 |
| Fourth | 2.45 |
| Fifth | 1.92 |
| Sixth | 1.45 |
| Seventh | 1.00 |
| Eighth | 0.75 |
| Ninth | 0.62 |
| Reverse | 2.96 |
| Final Drive Ratio: | 3.17:1 |
CHASSIS & SUSPENSION
| Front Suspension: | MacPherson Strut |
| Rear Suspension: | Compound Crank; Watts link (AWD models) |
| Steering Type: | Electric power-assisted rack-and-pinion |
| Turning Circle (ft. / m): | 36.8 / 11.2 |
| Brake Type: | Electric, four-wheel disc with Duralife™ rotors; brake drying, ABS and brake life monitoring |
| Brake Rotor Size (in. / mm): | 11.80 x 1.03 / 300 x 26 (front) 10.40 x 0.40 / 264 x 10 (rear) |

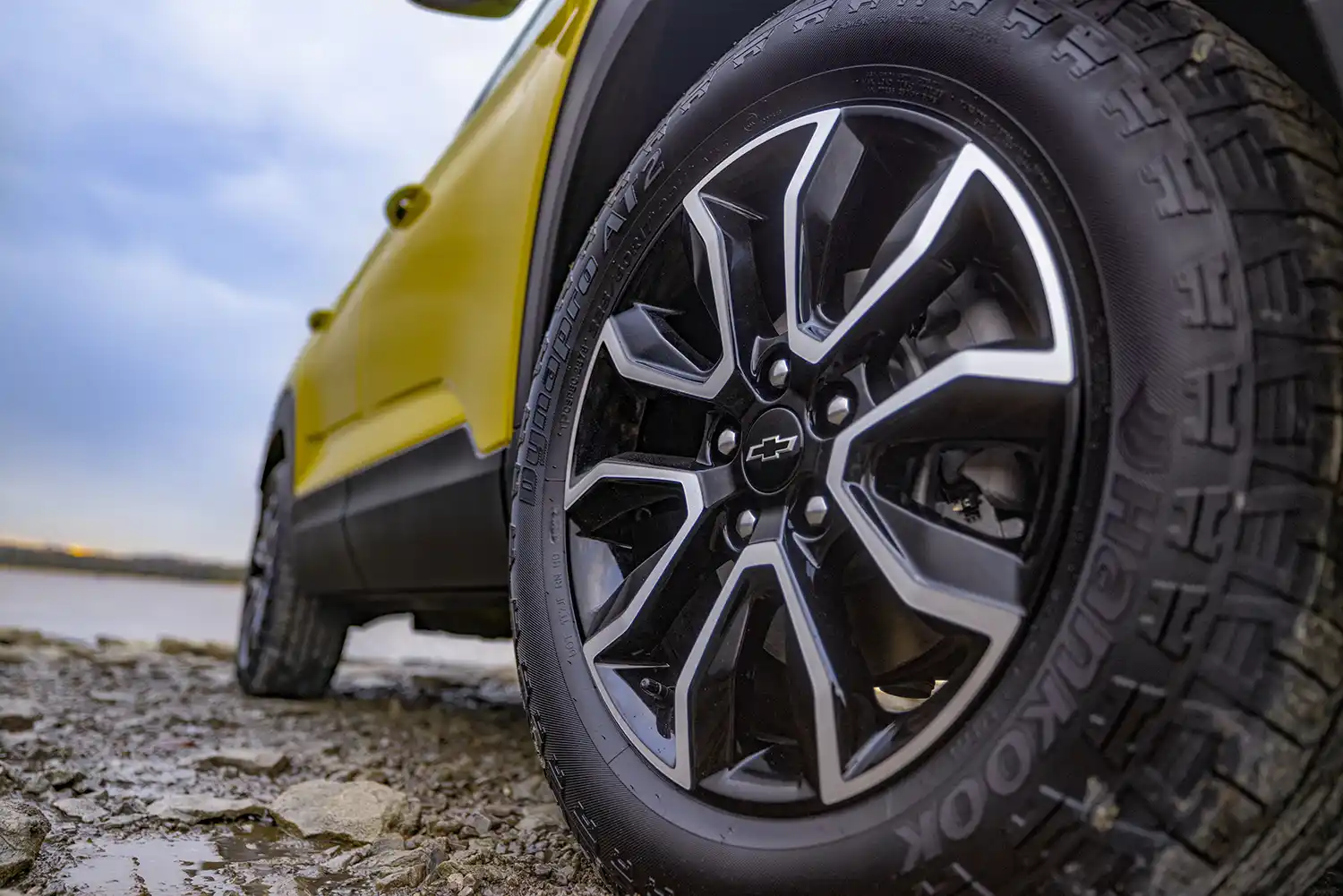

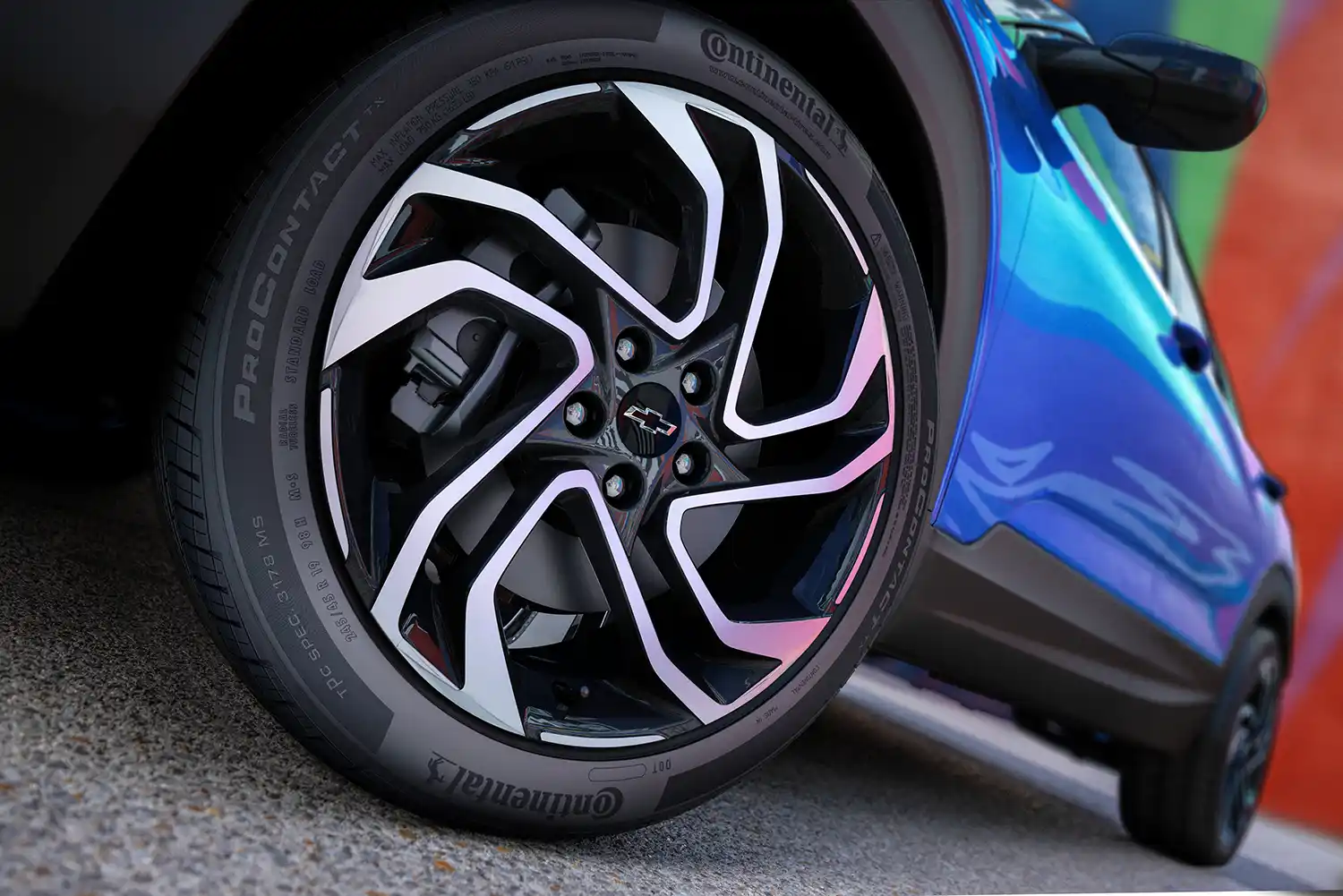

| Wheel Size: | 17-in. aluminum (LS, LT and ACTIV)
18-in. aluminum (LT) 19-in. aluminum (RS) |
| Tire Size: | 225/60R17 all-season (LS, LT)
225/60R17 sport terrain (ACTIV) 225/55R18 all-season (LT) 245/45R19 all-season (RS) |
EXTERIOR DIMENSIONS
| Wheelbase (in. / mm): | 103.9 / 2639 |
| Overall Length (in. / mm): | 173.5 / 4407 |
| Overall Width (in. / mm): | 71.2 / 1808 |
| Overall Height (in. / mm): | 65.2 / 1656 (LS, LT, ACTIV FWD)
65.3 / 1659 (RS FWD) 65.7 / 1669 (LS, LT, ACTIV, RS AWD) |
| Track (in. / mm): | 61.2 / 1554 (front)
61.3 / 1557 (rear) |
INTERIOR DIMENSIONS
| Headroom (in. / mm): | 40 / 1016 (front without sunroof)
38.3 / 973 (front with sunroof) 38.4 / 975 (rear without sunroof) 36.8 / 935 (rear with sunroof) |
| Legroom (in. / mm): | 40.9 / 1039 (front)
39.4 / 1001 (rear) |
| Shoulder Room (in. / mm): | 55.4 / 1408 (front) 53.8 / 1367 (rear) |
| Hip Room (in. / mm): | 52.3 / 1328 (front)
50.39 / 1280 (rear) |
WEIGHTS, CAPACITIES & CARGO VOLUME
| Base Curb Weight (lb. / kg): | 3029 / 1374 (1.2L FWD)
3095 / 1404 (1.3L FWD) 3252 / 1475 (1.3L AWD) |
| EPA Passenger Volume (cu. ft. / L): | 98.2 / 2780 |
| Max Cargo Volume1 (cu. ft. / L): | 25.3 / 716 (behind rear seat) 54.4 / 1540 (rear seat folded) |
| Trailering Capacity2 (lb. / kg): | 1000 / 453 (requires accessory hitch) |
1Cargo and load capacity limited by weight and distribution.
2Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual.
The weight of passengers, cargo and options or accessories may reduce the amount you can tow.
SAFETY & DRIVER AWARENESS FEATURES
| Airbags1: driver and front passenger frontal and knee, seat-mounted side-impact and roof rail-mounted head-curtain for all outboard seating positions. Includes Passenger Sensing System |
| Standard Tire Pressure Monitoring System; tire pressure monitor includes tire fill alert (excludes spare tire, if equipped) |
| Standard HD Vision Camera2 |
| Standard Chevy Safety Assist package2. Content includes Automatic Emergency Braking, Front Pedestrian Braking, Lane Keep Assist with Lane Departure Warning, Following Distance Indicator, Forward Collision Alert and IntelliBeam auto high beams |
| Driver Confidence and Cruise Package2 available on LS. Content includes cruise control, Lane Change Alert with Side Blind Zone Alert, Rear Cross Traffic Alert and Rear Park Assist |
| Adaptive Cruise Control2 is available on LT, ACTIV and RS |
| Driver Confidence Package2 is available LT, ACTIV and RS. Content includes Lane Change Alert with Side Blind Zone Alert, Rear Cross Traffic Alert and Rear Park Assist |
1Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the
appropriate child restraint. See your vehicle Owner’s Manual for more information.
2Safety or driver-assistance features are no substitute for the driver’s responsibility to operate the vehicle in a safe manner. Read the vehicle Owner’s Manual for more important feature limitations and information.
