The 2025 Ford Mustang GTD is a street-legal race car, combining the soul of a Mustang with extreme track capability. Its 800 hp V8, carbon fiber construction, and advanced aerodynamics redefine what a roadgoing Mustang can do. Here’s a full breakdown of its specifications:
Performance & Engine |
|
|---|---|

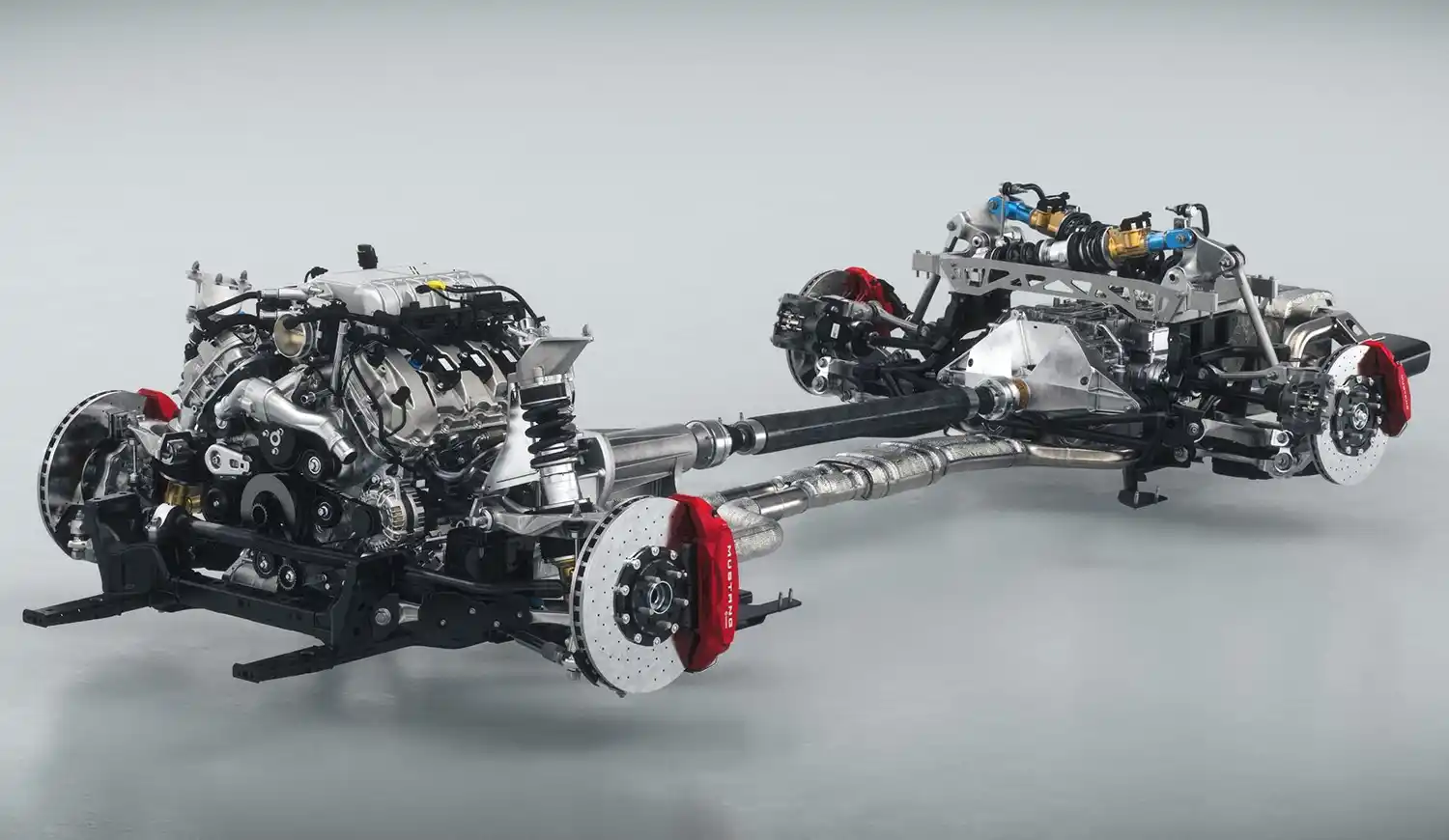

| Engine | 5.2-liter supercharged V8 Dual air inlets, dry-sump lubrication Redline >7,500 rpm ~800 hp |

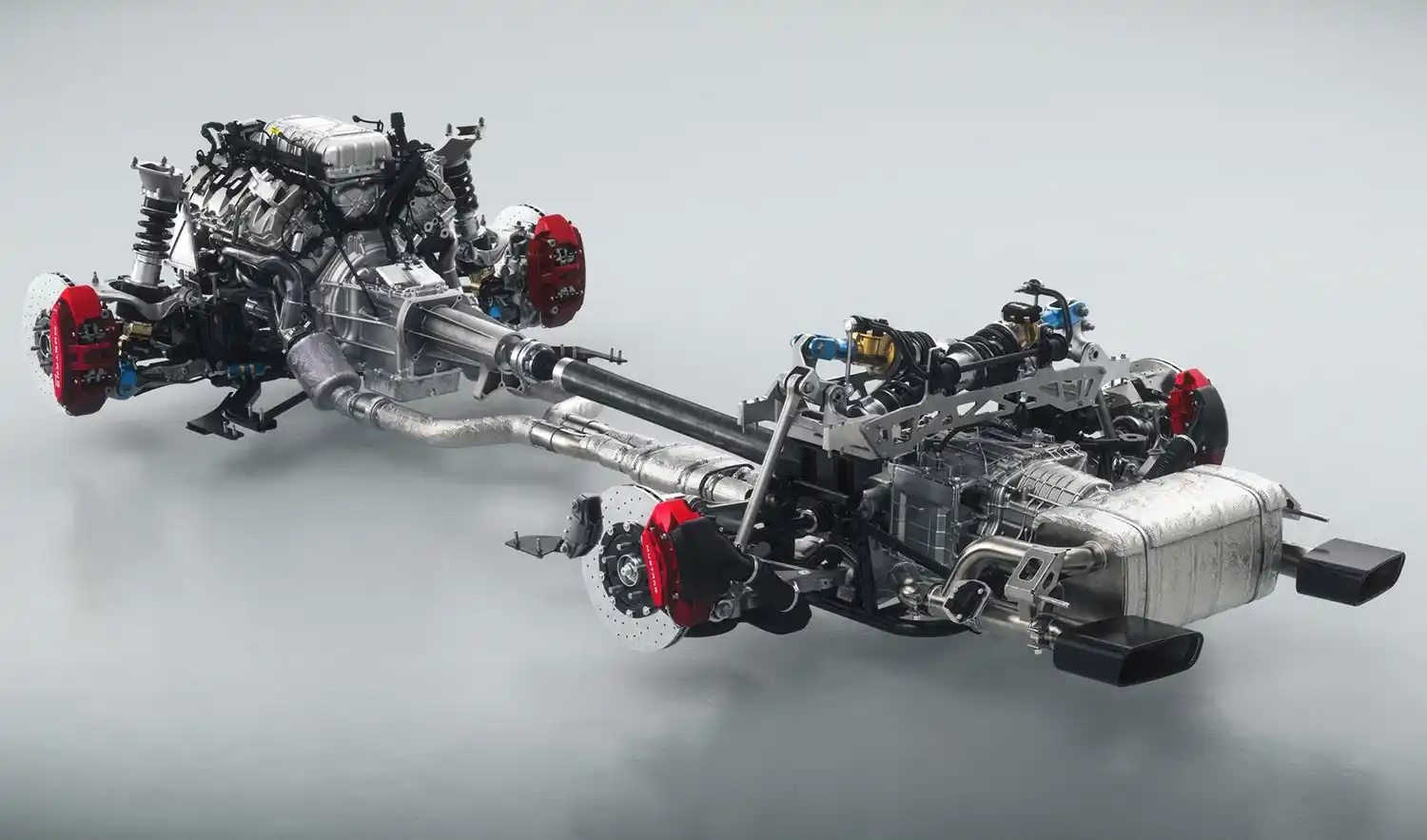

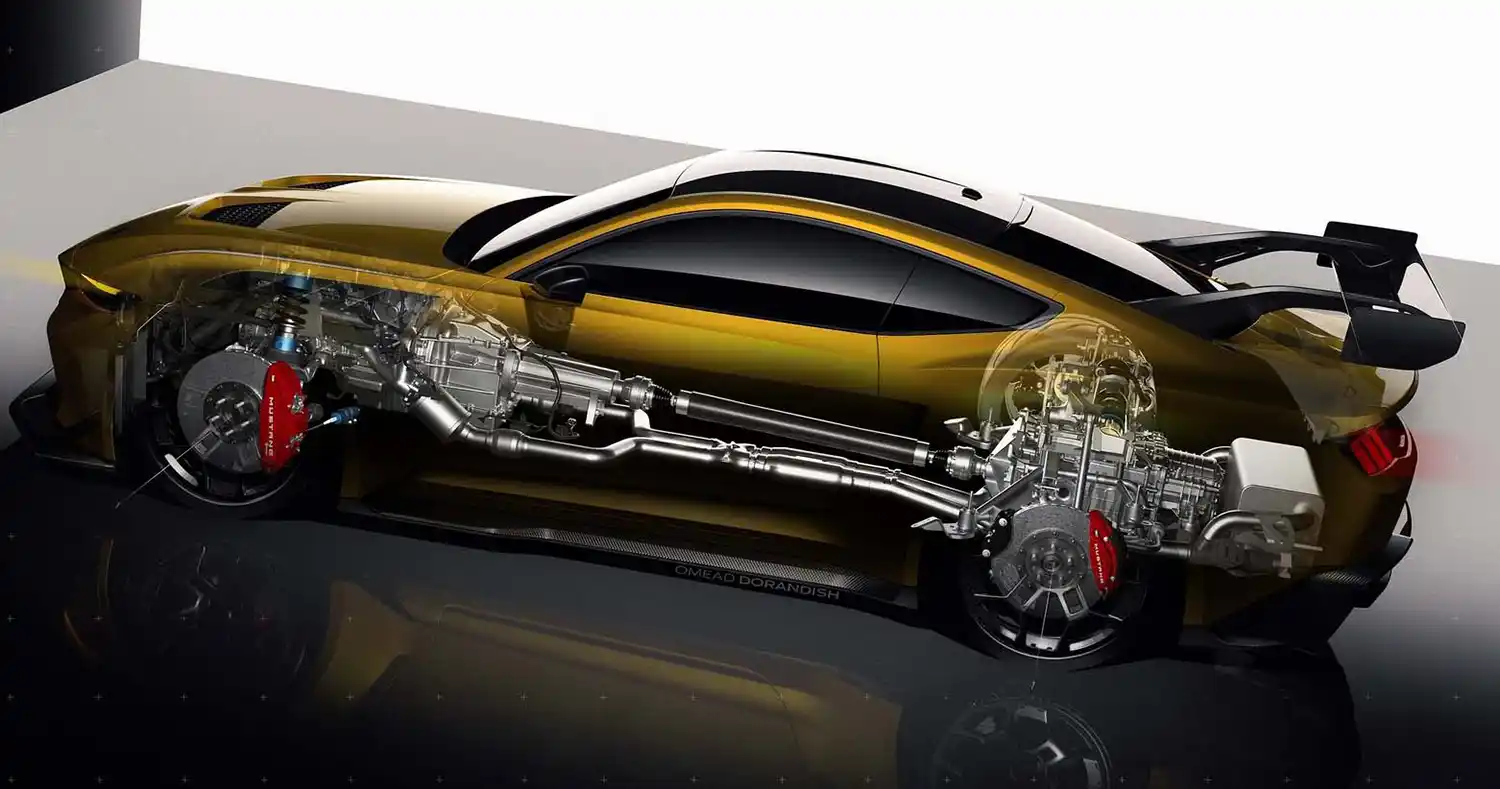

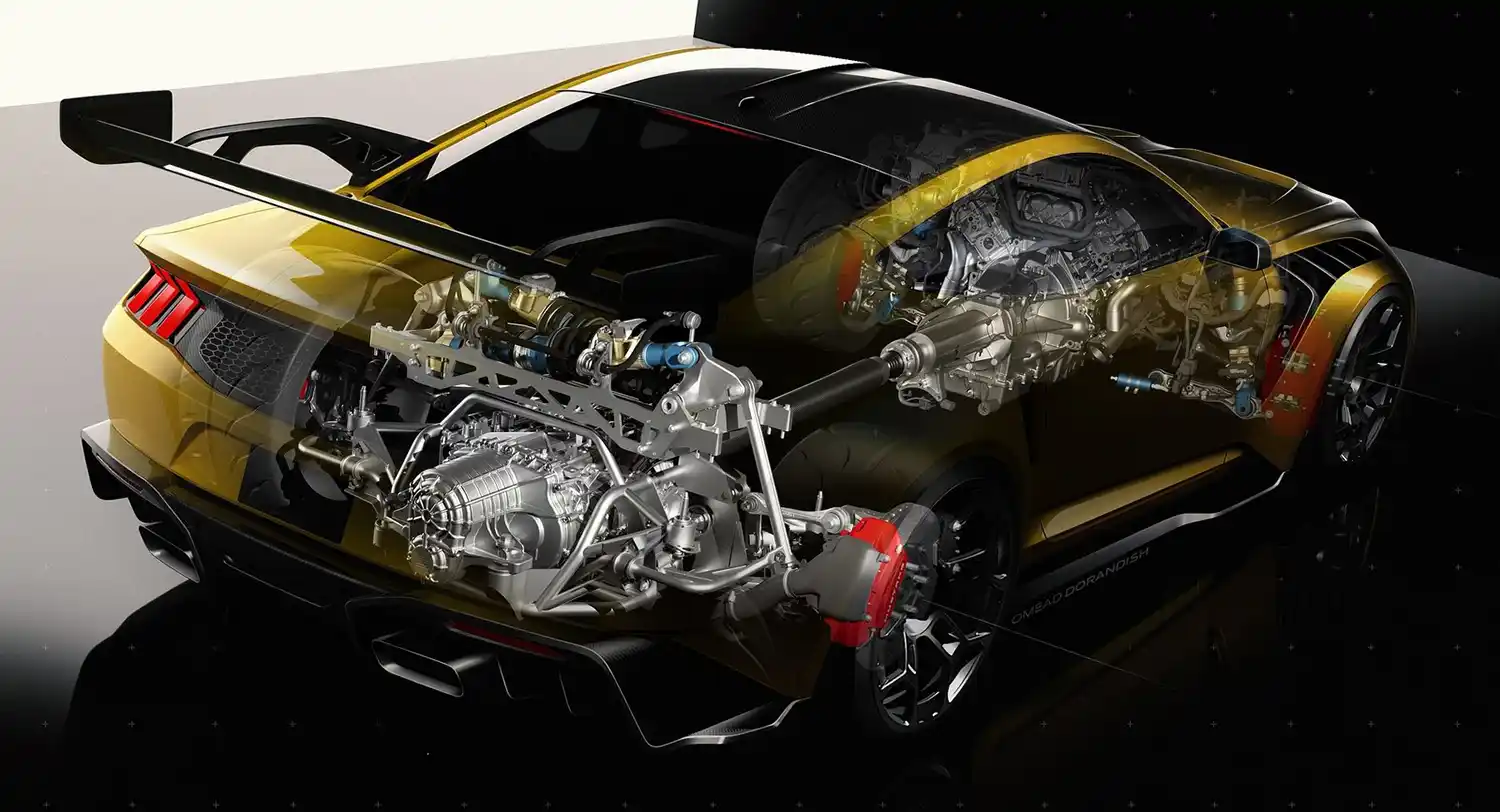

| Transmission | 8-speed dual-clutch rear transaxle Carbon fiber driveshaft for near 50/50 weight distribution |
| Drivetrain | Rear-wheel drive with advanced traction control Track mode adjustable |
| Performance | Targeted sub-7-minute Nürburgring lap time Extreme track-ready acceleration and handling |
Exterior & Design |
|
|---|---|

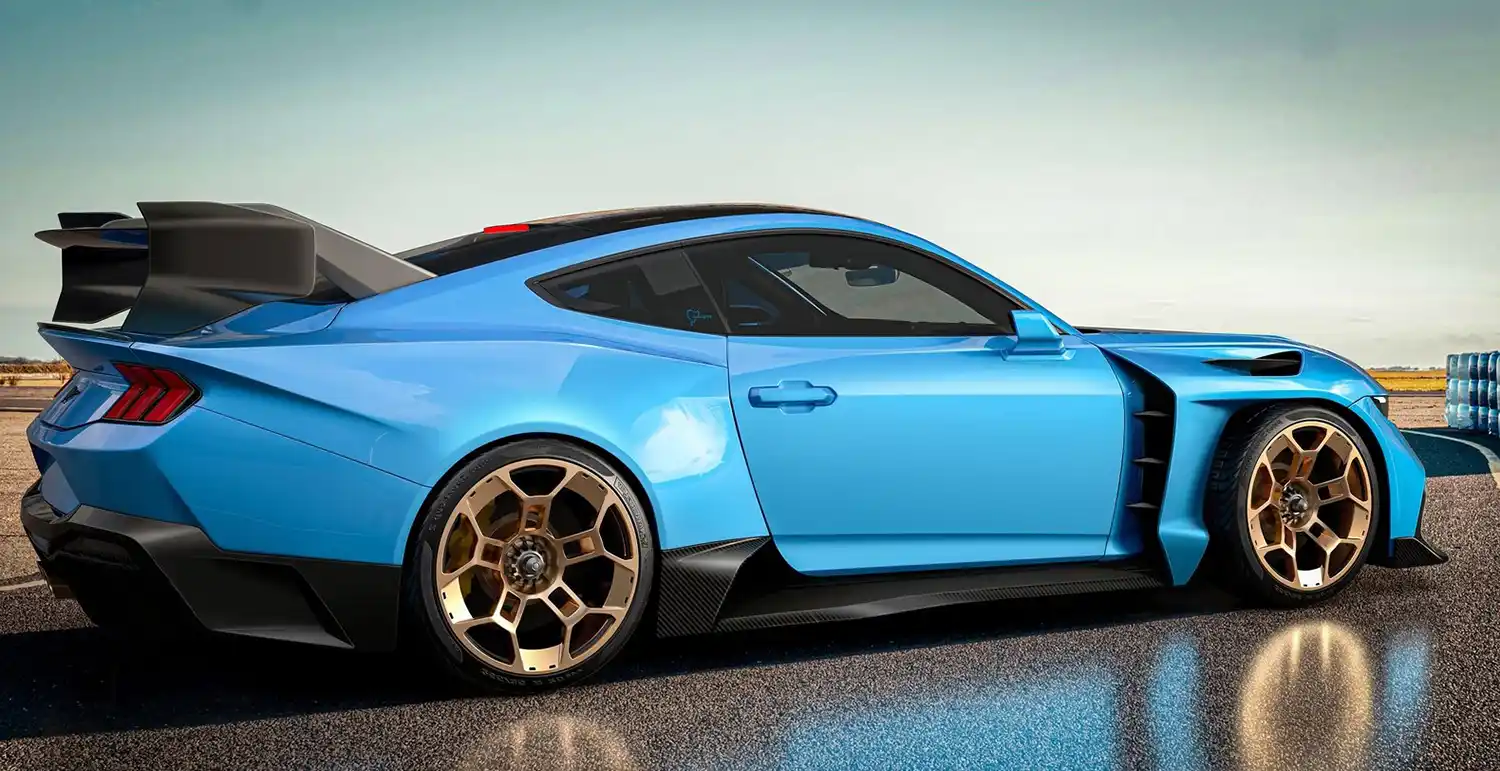

| Body | Mostly carbon fiber panels: fenders, hood, roof, diffuser, door sills Lower weight and center of gravity |

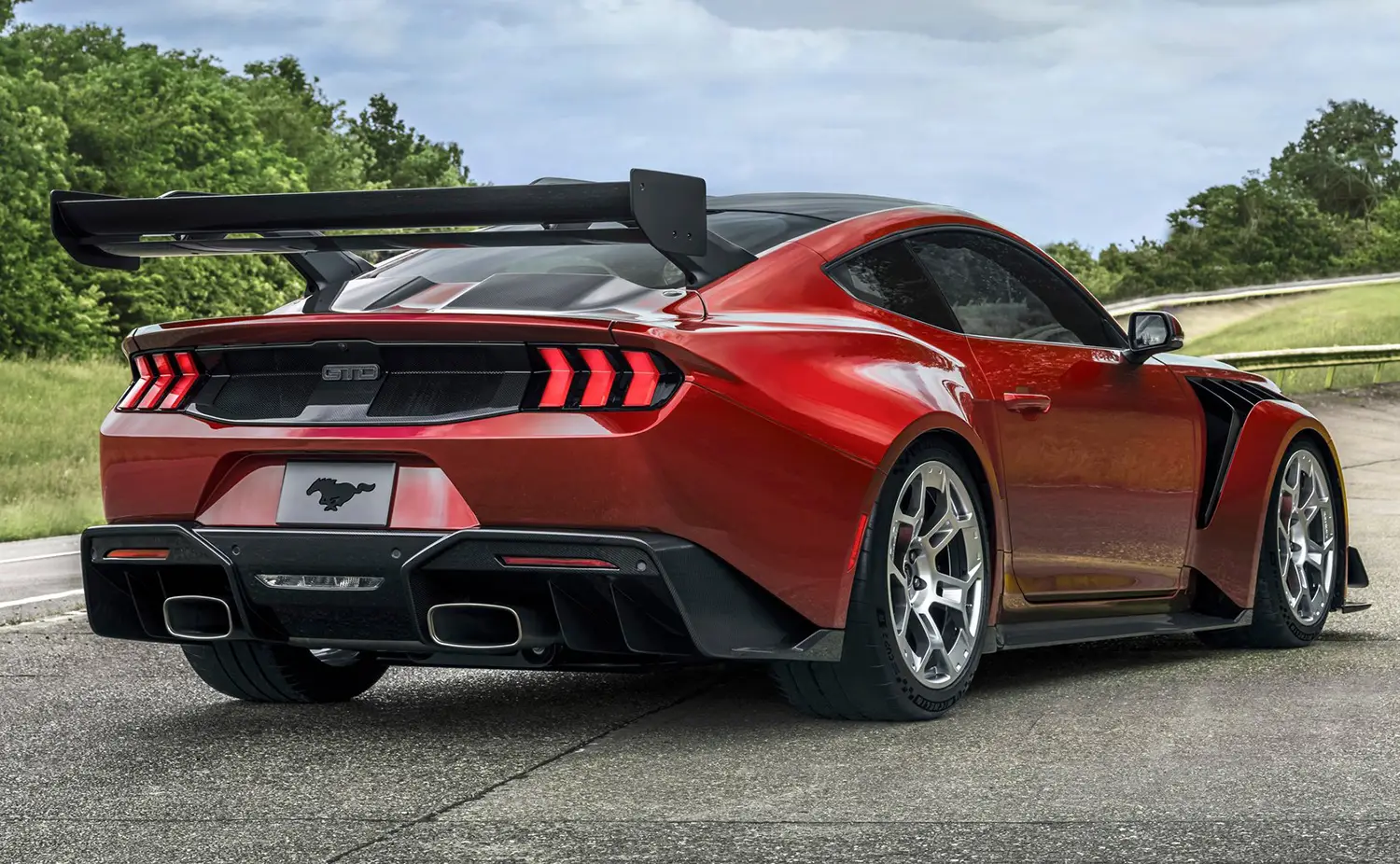

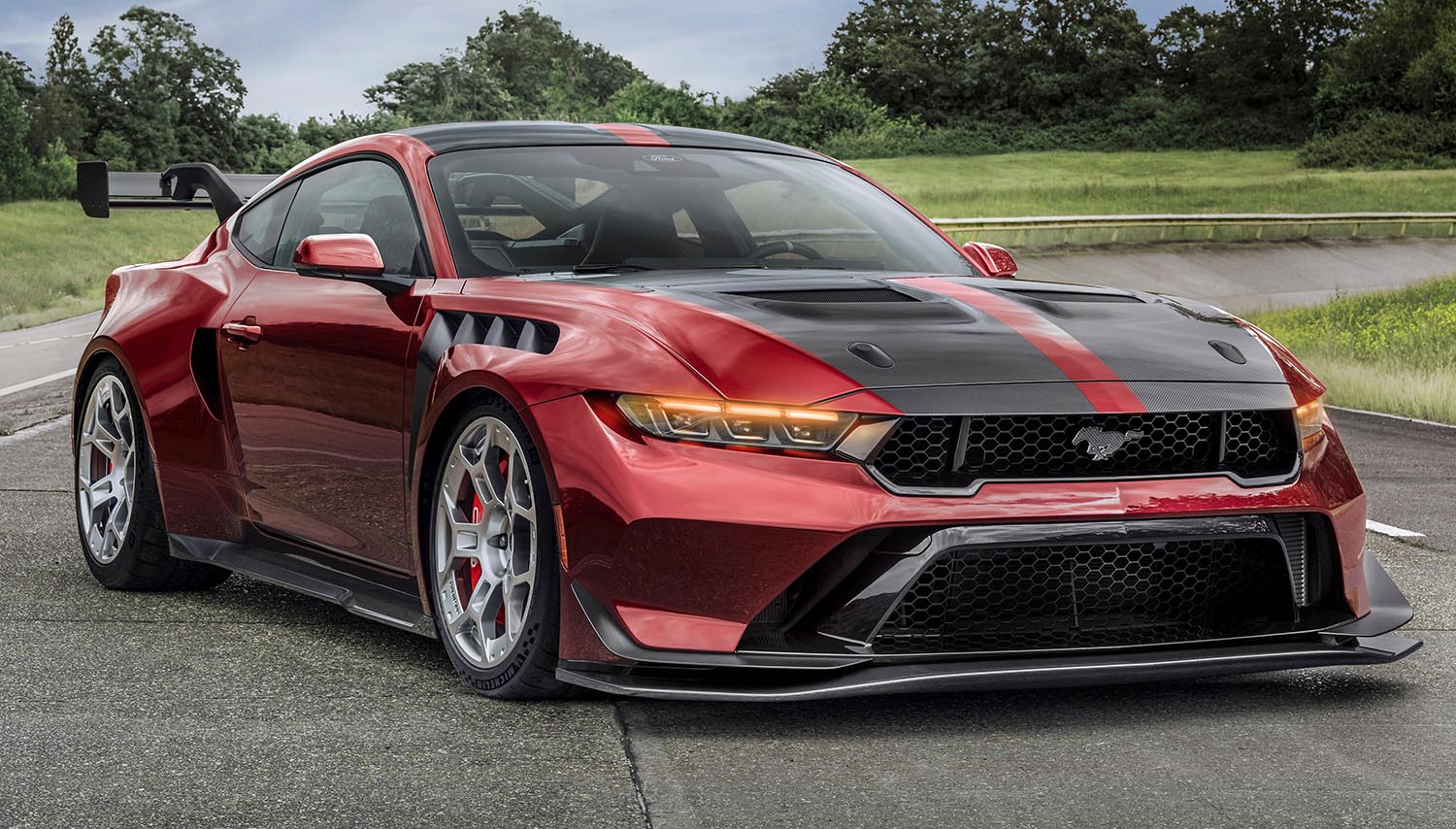

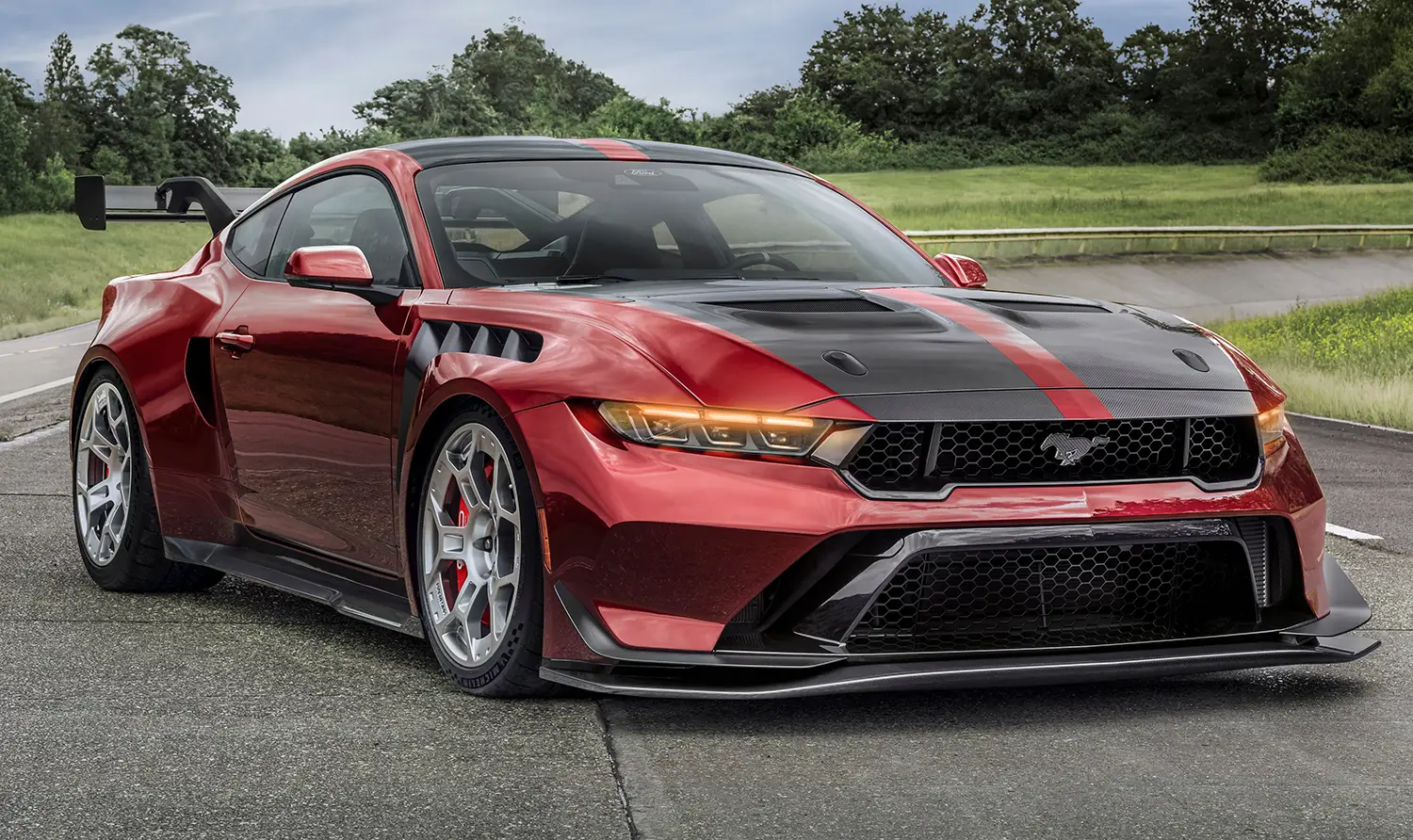

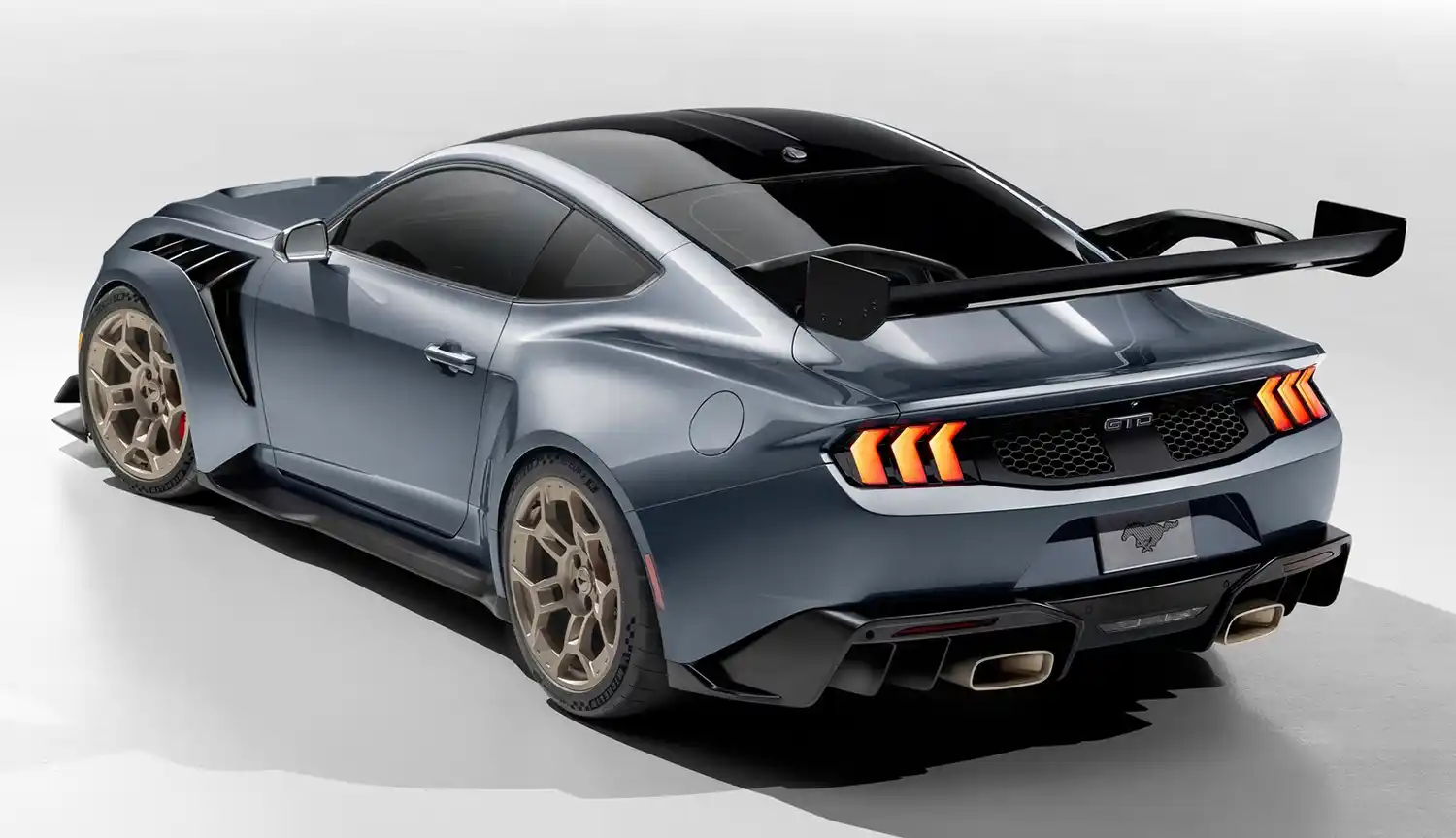

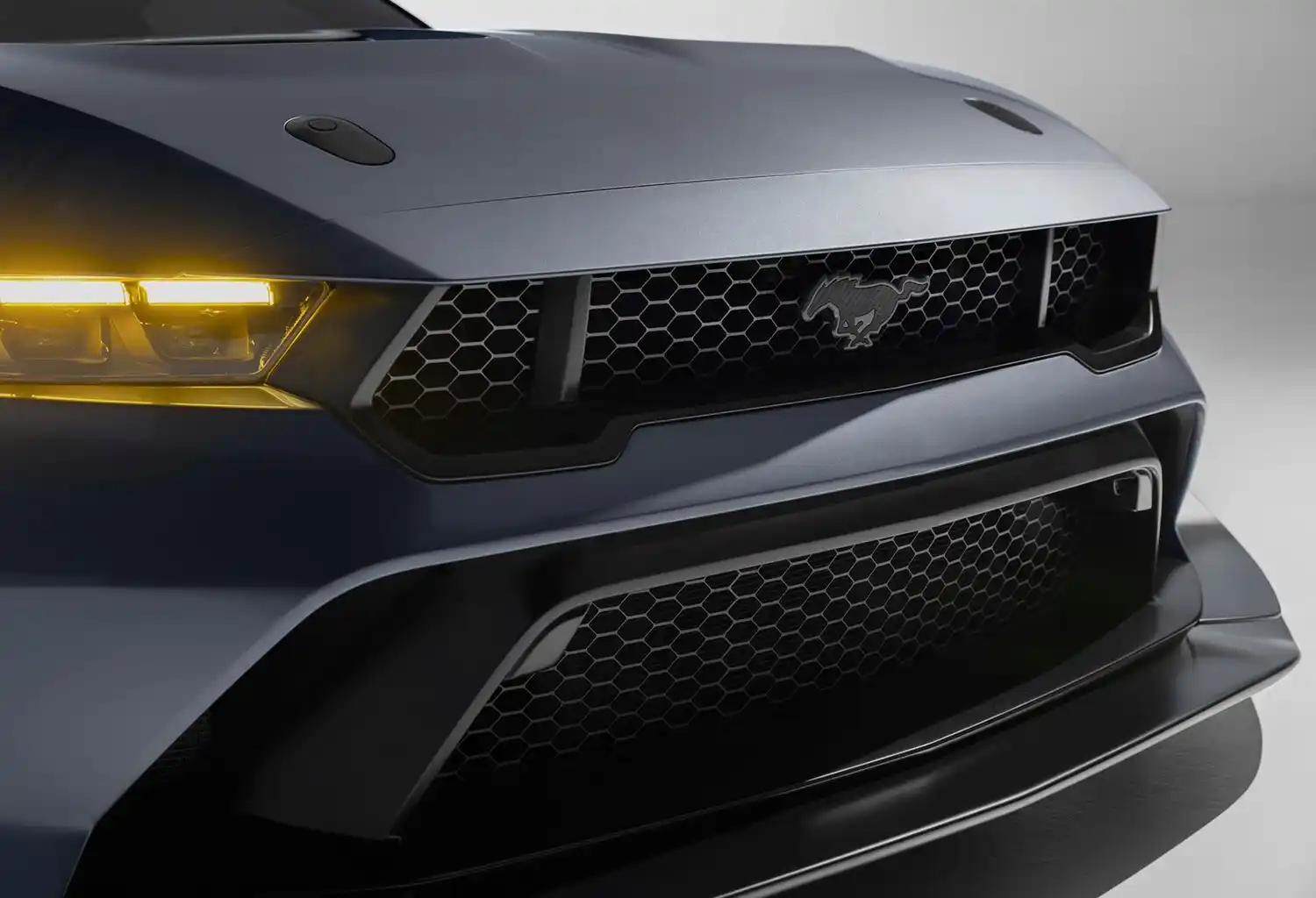

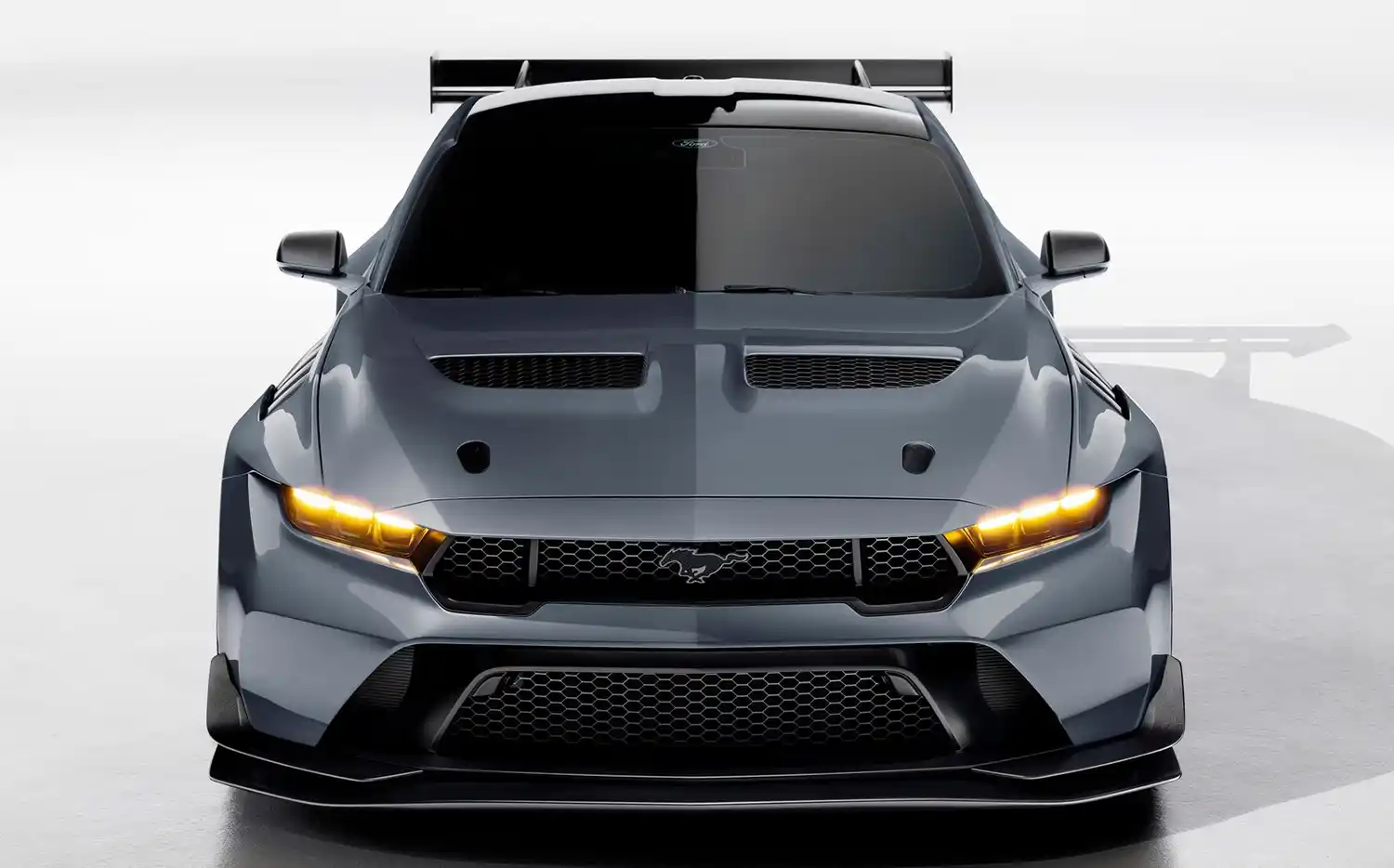

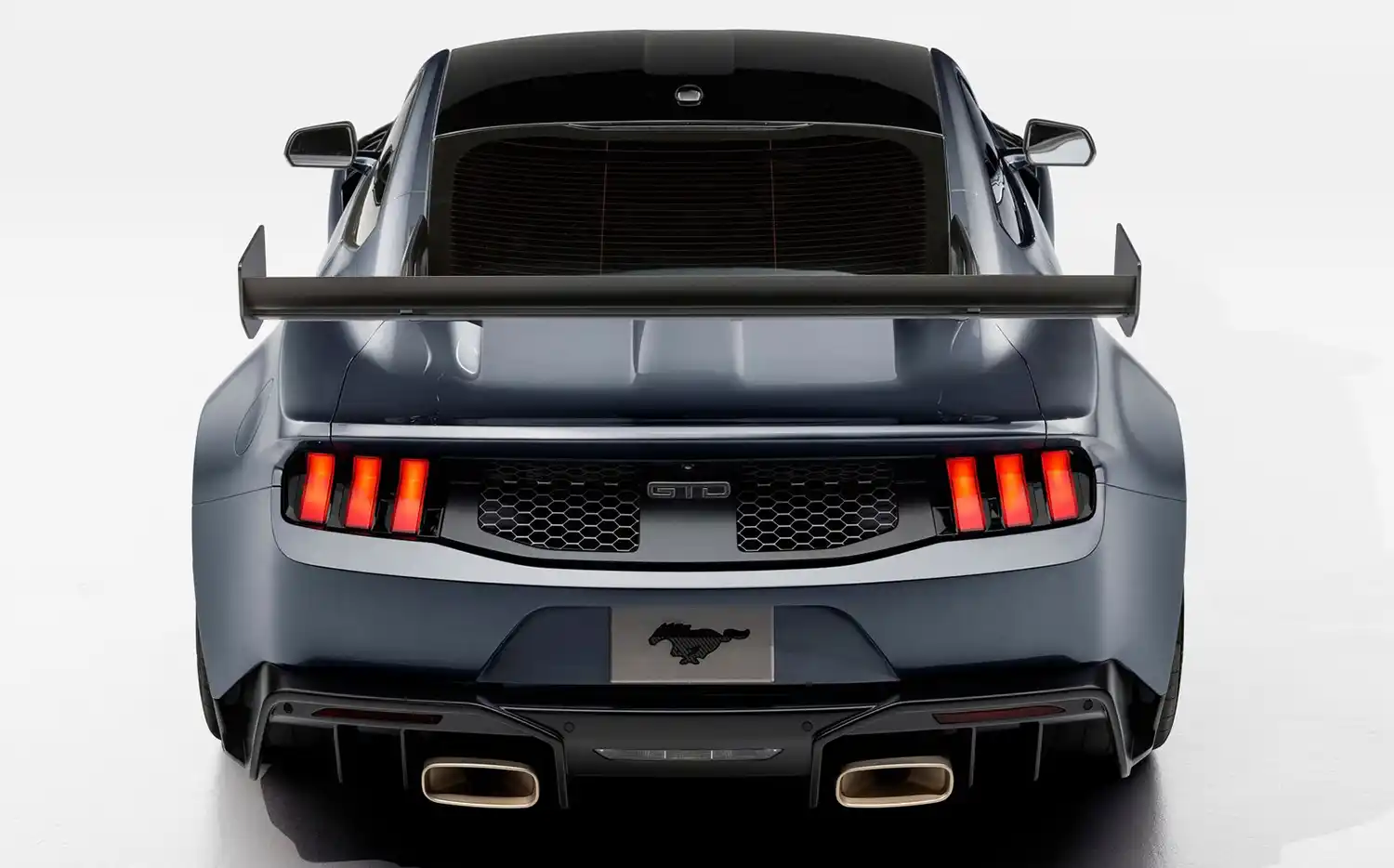

| Aerodynamics | Front splitter, vented hood & fenders C-pillar-mounted active rear wing Hydraulic front flaps and underbody tray |
| Downforce | Balanced across front and rear Optimized for high-speed cornering and track stability |
| Wheels & Tires | 20-inch forged aluminum or magnesium wheels Front 325 mm / Rear 345 mm tires |
Suspension & Handling |
|
|---|---|
| Front Suspension | Dual short-long arm with adaptive spool valve dampers Hydraulic dual spring rate & adjustable ride height |

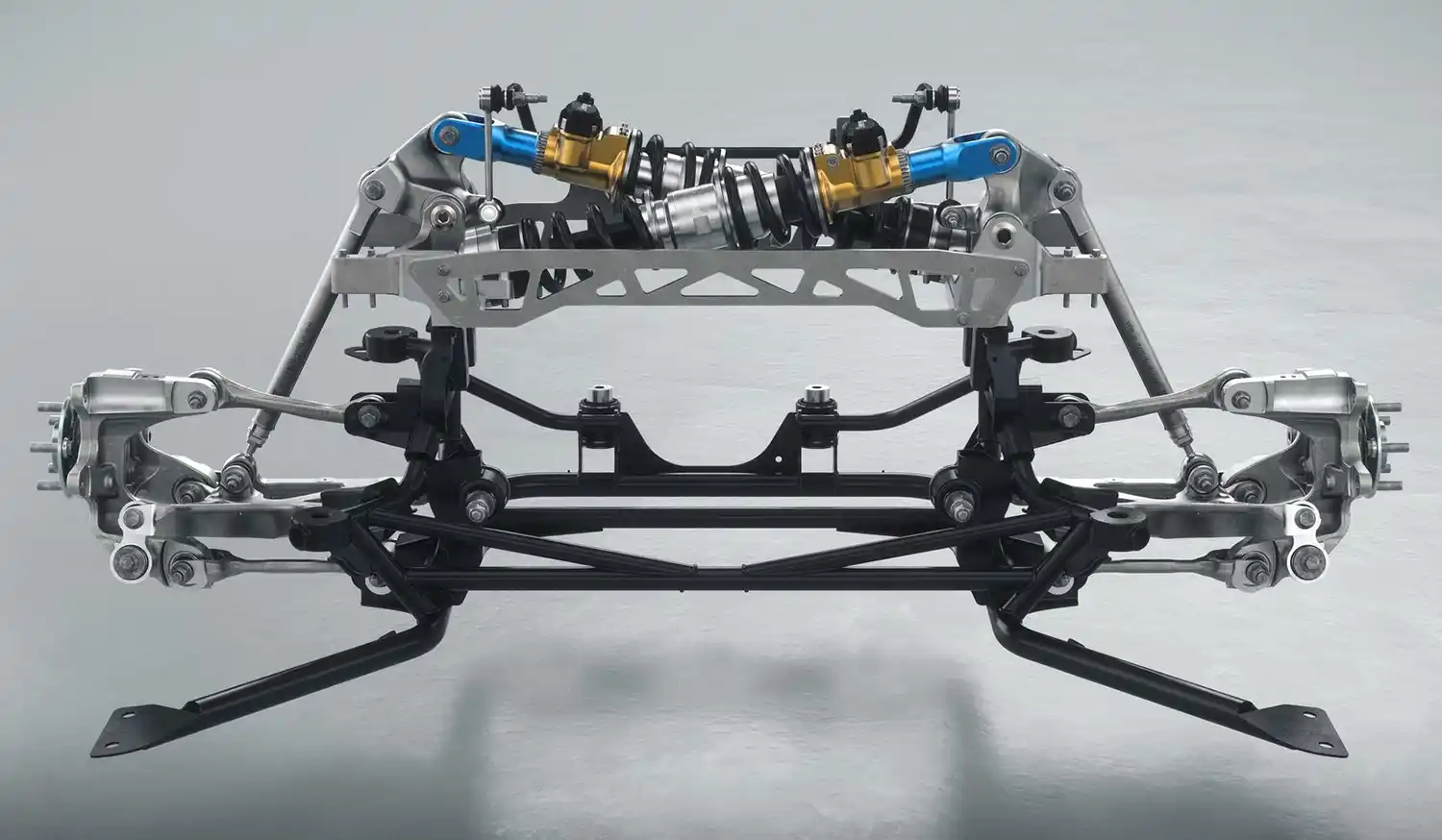

| Rear Suspension | Integral link pushrod and rocker arm Adaptive spool valve coil-over shocks, horizontal layout Weight-efficient tubular subframe |
| Brakes | Brembo carbon-ceramic Enhanced cooling ducts and heat rejection |
Interior & Comfort |
|
|---|---|
| Seats | RECARO® track-optimized Miko suede and leather trim |

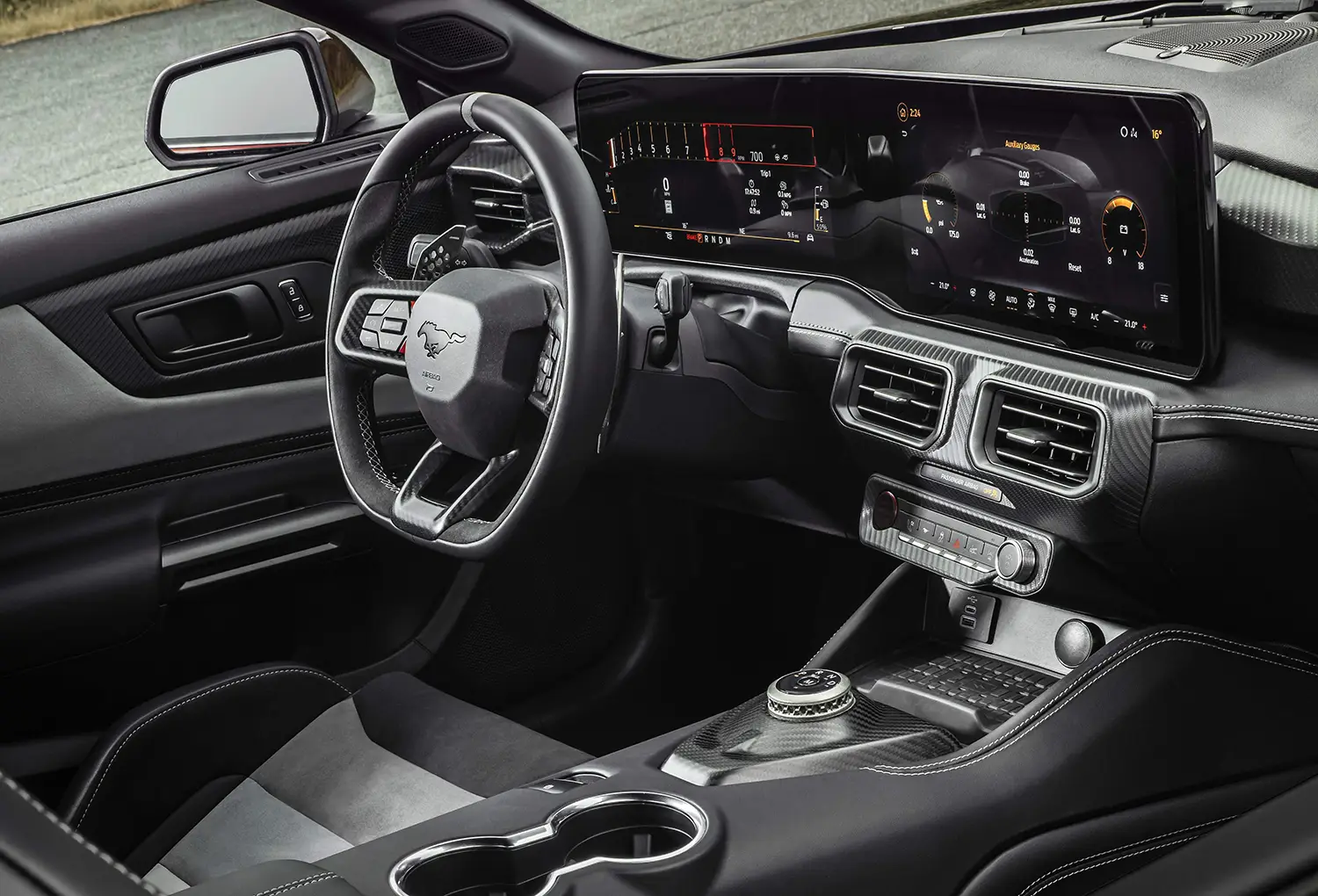

| Steering & Controls | 3D-printed titanium paddle shifters Rotary dial shifter, serial plate Inspired by F-22 titanium parts |
| Dashboard | Digital displays for track and road info Multiple interior color combinations |
| Rear Space | Removed for weight savings Provides small cargo area |
Infotainment & Technology |
|
|---|---|
| Electronics | Advanced electrical architecture from 7th-gen Mustang Over-the-air updates Multiple driving modes |
| Driver Assistance | Variable traction control in track mode Allows modulation without removing hands from wheel |
Optional Features |
|
|---|---|
| Exterior | Custom colors and aero packages Hydraulically controlled flaps & active rear wing |
| Interior | Special finishes and unique trim Customer-provided color matching |
In summary, the 2025 Ford Mustang GTD fuses race-bred technology, extreme power, carbon fiber construction, and advanced aerodynamics to become the fastest, most track-capable Mustang ever made. It’s a true street-legal race car engineered for both performance and precision.
